Best Way to Register Blocks/Entities

Game Play & Game Design
#1

Wow, it’s been a while since I posted a question.

I finally re wrote my rendering system for my puzzle game that I restarted a while ago and I need a good way to register blocks. Here is what the game looks like so you can get a feel for what I have:

1024×576 179 KB

So there are blocks, but I need a way to register the different types. Eg, trampoline block, or normal wall block and so forth. Right now I am just creating a new instance of the class of that block which then registers a Box to jME. I then join all the meshes together at the end of building the current level. So performance isn’t a problem.
What’s the best way to approach it so that I can, in the level creation code, call:


        makeBlock(new Vector3f(3, 40, 40), Block_Wall.class);

Therefore, creating the block of whichever block.class I put in there?
The constructor for the makeBlock is:


    public void makeBlock(Vector3f pos, Class<? extends BlockSuper> block){
        blocks[(int) pos.x][(int) pos.y][(int) pos.z] = new BlockSuper(main, new Vector3f(pos.x, pos.y, pos.z), level);
        blocks[(int) pos.x][(int) pos.y][(int) pos.z].setUpPhysics();
    }

So as you can see I just create a BlockSuper there, which is the superclass for all blocks. I need to take the .class of whatever block I want there and create an instance of it from that. I know about reflection:


        try {
            Class<?> clazz = Class.forName("Engine.Blocks.BlockSuper");
            Constructor<?> constructor = clazz.getConstructor(Main.class, Vector3f.class, Node.class);
            Object instance = constructor.newInstance(main, pos, level);
        } catch(Exception e){
            e.printStackTrace();
        }

However I really don’t know if this is what I should be using, as it is a rather new concept to me.
Thanks for any help.

#2

Why do you think that it is unfeasible to just “register” already build block instances?

#3

Could you elaborate?

#4

why not


public void makeBlock(BlockSuper block) {...}

makeBlock(new BlockWall(main, new Vector3f(3, 40, 40)));
#5

Oh you’re right… I was half asleep or something. Sometimes I get retarded like that. My bad.

#6

However, I do need to create walls and stuff. This is the wall creation code:


    public void makeWall(Vector3f startPos, Vector3f endPos, Class<? extends BlockSuper> block) {
        for (int x = (int) startPos.x; x <= endPos.x; x++) {
            for (int y = (int) startPos.y; y <= endPos.y; y++) {
                for (int z = (int) startPos.z; z <= endPos.z; z++) {
                    makeBlock(x, y, z, block);
                }
            }
        }
    }

So just creating a new instance for that won’t work.

#7

In this case you could use factories


interface BlockFactory<T extends BlockSuper>
{
  public T create(Vector3f pos);
}

public static final BlockFactory<WallBlock> wallBlockFactory = new BlockFactory<> {
  public WallBlock create(Vector3f pos){
    return new WallBlock(main, pos);
  }
}

makeWall(start, end, wallBlockFactory);
#8

Thanks :slight_smile:

It would seem that factories are basically just things to create new objects of a class that extends another one, but you don’t know which subclass it will be. Why not just use reflection? Please correct me if I’m wrong, I know next to nothing about factories.

Actually, I did some research and didn’t find much on the subject. Would you mind giving a very brief explanation of them?

#9

A factory is a class or group of functions that creates a “new” instance of an object in java. It is useful for tile maps because each tile is different and needs a different object. If you didn’t have a factory you run the risk of overwriting tile data in more than one tile.

In short, factories just make sure that each tile can store its own data.

#10

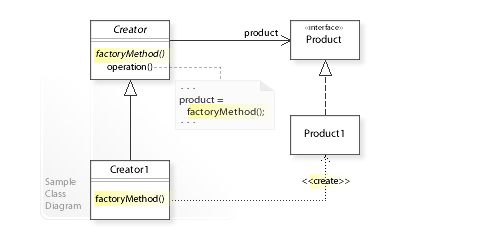

Wikipedia does a good job of explaining it, and even includes some examples in Java:


#11

Okay, that makes sense.
So this bit of code here:


interface BlockFactory<T extends BlockSuper>
{
  public T create(Vector3f pos);
}

Is obviously just an interface I would have to implement in my Level class, correct?

And then this bit:


public static final BlockFactory<WallBlock> wallBlockFactory = new BlockFactory<> {
  public WallBlock create(Vector3f pos){
    return new WallBlock(main, pos);
  }
}

Is the piece that creates the new object. The only thing I don’t get about this is that you wrote it as creating WallBlocks instead of the superclass, BlockSuper. Does this mean I have to create one of these methods (or are these their own weird classes… Unfamiliar syntax for me) for every single block I make, or did you mean to put the superclass and accidentally wrote WallBlock? If it’s not the latter it doesn’t seem very dynamic, no?

Then this code:


makeWall(start, end, wallBlockFactory);

Is the bit that actually makes the blocks. This is the bit that leads me to believe that I have to create one of those strange

public static final BlockFactory<WallBlock> wallBlockFactory = new BlockFactory<> { ... }

things for each individual block.

#12

Yes, you would have to create a factory for each block type you have. In my previous code I created an anonymous class and stored it in a “singleton”, I did it that way so that you don’t need to create a new instance of the factory on each “makeBlock” call.

The benefits of not using reflection for this task is type safety and better performance.

#13

So this is not very dynamic is it? Let’s say we have a game with many, many blocks, like the game Minecraft. Does that game use factories? It seems for a game like that this way would not be very good at all.

Excuse me if I’m being a bit irritating, I am trying to get as in depth as possible in order to fully understand it. Feel free to tell me to back off :slight_smile:

#14

You perhaps have to rethink your solution. Why not have only one data class for Blocks with a type component:


public class Block
{
  public enum Type { Wood, Concrete, Metal; }

  public final Type type;
}
#15

How would that let one do specific things with a single type? Let’s say I want to do something when the player ball rolls onto a block, like fill his hearts back up. Wouldn’t I need a specific subclass like, RegenBlock or something that overrides onPlayerCollide(PlayerBall player)?

#16

Doing it like Minecraft? Here is how:
‘Fake’-Singletons, and flat binary data.

More detailed description:

You have one super class called ‘Block’.
This class could look like this:


abstract class Block
{
  String genericName;

  public Block(String genericName)
  {
    this.genericName = genericName;
  }

  public void onPlayerCollide(Player p, int thisBlockX, int thisBlockY, int thisBlockZ){/**Empty**/}
  public void onPlayerClick(Player p, int thisBlockX, int thisBlockY, int thisBlockZ){/**Empty**/}
}

Then you have classes like this:


class RegenBlock extends Block
{
  RegenBlock()
  {
    super("regenBlock");
  }

  public void onPlayerCollide(Player p, int thisBlockX, int thisBlockY, int thisBlockZ)
  {
    p.health++;
  }
}

+////////////////////////////////////////

class ButtonBlock extends Block
{
  ButtonBlock()
  {
    super("buttonBlock");
  }

  public void onPlayerClick(Player p, int thisBlockX, int thisBlockY, int thisBlockZ)
  {
    // Do what a button does.
  }
}

Then you have a special class, which stores the existing block-types (not the blocks themself!):


class BlockList
{
  Block[] blockList;

  public BlockList()
  {
     blockList = new Block[256];
     blockList[0] = new BlockAir();
     blockList[1] = new RegenBlock();
     blockList[2] = new ButtonBlock();
  }
}

Then you have a chunk-class, like this.
It only stores integers which are nothing more than indexes into the BlockList’s “blocks” array.


class Chunk
{
    <any-structure-that-can-store-integers> blocks;

    public Chunk()
    {
        // set block
        blocks(blabla-integer-setter x/y/z) = 0; // 0 is 'BlockAir' in the BlockList's 'blocks' array.
        blocks(blabla-integer-setter x/y/z) = 1; // 1 is 'RegenBlock' in the BlockList's 'blocks' array.
    }
}

Now then we have this:


// In the method section which does collision and stuff.
int blockColllidedWithX = ...;
int blockColllidedWithY = ...;
int blockColllidedWithZ = ...;
int blockData = ... This is the integer we get from a Chunk's block data-structure.

BlockList[blockData].onPlayerCollide(player, blockColllidedWithZ, blockColllidedWithY, blockColllidedWithZ);

Note that:

  • This is quite a long piece of code, written in a haste, so I probably forgot something.
  • Read this post multiple times, until you understand it.
  • This can also be optimized a LOT, and can be made much more dynamic.
  • If you don’t understand something, ask me or anyone that understands this.

Have a nice day!

  • Longor1996
#17

That’s a very nice approach actually, it makes it so that I only need to create one instance of each block. There are only a few downers I can see that can come from using this approach! I’ll go and code it all in and report back if I have any problems. Thanks a bunch!

Edit:

Okay I decided to go with Factories as I decided that I really don’t need a large amount of blocks. Because of my collision system sometimes I was getting null when colliding with something because of some positioning readjustments I had to do. So I ended up making one instance of a new class, Block_Air, and setting everything that wasn’t occupied to that one instance. Obviously there are some drawbacks to that, but hey, it works.

Thanks a lot for the help guys. By the way, I re did some of the rendering stuff, check out how it looks now:

1024×576 300 KB
