Why is this stuttering?

Newbie & Debugging Questions
#1

Here’s a demo of the applet

http://www.joeysturgis.com/roguelike

Here’s the game loop:


	private void gameLoop3(long ufreq) {
		long nanosInSecond = 1000L * 1000L * 1000L;
		long updateFrequency = ufreq;
		long updateInterval = nanosInSecond / updateFrequency;
		long nextUpdateTick = System.nanoTime();
		while (true) {
			long start = System.nanoTime();
			for (long now = System.nanoTime(); now > nextUpdateTick; nextUpdateTick += updateInterval) {
				this.update();
			}
			process_time += System.nanoTime() - start;
			render();
			Sync.sync(60);
		}
	}

Here’s sync:


/*
 * Copyright (c) 2002-2012 LWJGL Project
 * All rights reserved.
 *
 * Redistribution and use in source and binary forms, with or without
 * modification, are permitted provided that the following conditions are
 * met:
 *
 * * Redistributions of source code must retain the above copyright
 *   notice, this list of conditions and the following disclaimer.
 *
 * * Redistributions in binary form must reproduce the above copyright
 *   notice, this list of conditions and the following disclaimer in the
 *   documentation and/or other materials provided with the distribution.
 *
 * * Neither the name of 'LWJGL' nor the names of
 *   its contributors may be used to endorse or promote products derived
 *   from this software without specific prior written permission.
 *
 * THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
 * "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED
 * TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
 * PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR
 * CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
 * EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
 * PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
 * PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF
 * LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
 * NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
 * SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
 */
package com.ingamedev.util;

/**
* A highly accurate sync method that continually adapts to the system
* it runs on to provide reliable results.
*
* @author Riven
* @author kappaOne
*/
public class Sync {

	/** number of nano seconds in a second */
	private static final long NANOS_IN_SECOND = 1000L * 1000L * 1000L;

	/** The time to sleep/yield until the next frame */
	private static long nextFrame = 0;

	/** whether the initialisation code has run */
	private static boolean initialised = false;

	/** for calculating the averages the previous sleep/yield times are stored */
	private static RunningAvg sleepDurations = new RunningAvg(10);
	private static RunningAvg yieldDurations = new RunningAvg(10);


	/**
	 * An accurate sync method that will attempt to run at a constant frame rate.
	 * It should be called once every frame.
	 *
	 * @param fps - the desired frame rate, in frames per second
	 */
	public static void sync(int fps) {
		if (fps <= 0) return;
		if (!initialised) initialise();

		try {
			// sleep until the average sleep time is greater than the time remaining till nextFrame
			for (long t0 = getTime(), t1; (nextFrame - t0) > sleepDurations.avg(); t0 = t1) {
				Thread.sleep(1);
				sleepDurations.add((t1 = getTime()) - t0); // update average sleep time
			}

			// slowly dampen sleep average if too high to avoid yielding too much
			sleepDurations.dampenForLowResTicker();

			// yield until the average yield time is greater than the time remaining till nextFrame
			for (long t0 = getTime(), t1; (nextFrame - t0) > yieldDurations.avg(); t0 = t1) {
				Thread.yield();
				yieldDurations.add((t1 = getTime()) - t0); // update average yield time
			}
		} catch (InterruptedException e) {

		}

		// schedule next frame, drop frame(s) if already too late for next frame
		nextFrame = Math.max(nextFrame + NANOS_IN_SECOND / fps, getTime());
	}

	/**
	 * This method will initialise the sync method by setting initial
	 * values for sleepDurations/yieldDurations and nextFrame.
	 *
	 * If running on windows it will start the sleep timer fix.
	 */
	private static void initialise() {
		initialised = true;

		sleepDurations.init(1000 * 1000);
		yieldDurations.init((int) (-(getTime() - getTime()) * 1.333));

		nextFrame = getTime();

		String osName = System.getProperty("os.name");

		if (osName.startsWith("Win")) {
			// On windows the sleep functions can be highly inaccurate by
			// over 10ms making in unusable. However it can be forced to
			// be a bit more accurate by running a separate sleeping daemon
			// thread.
			Thread timerAccuracyThread = new Thread(new Runnable() {
				public void run() {
					try {
						Thread.sleep(Long.MAX_VALUE);
					} catch (Exception e) {}
				}
			});

			timerAccuracyThread.setDaemon(true);
			timerAccuracyThread.start();
		}
	}

	/**
	 * Get the system time in nano seconds
	 *
	 * @return will return the current time in nano's
	 */
	private static long getTime() {
		//return (Sys.getTime() * NANOS_IN_SECOND) / Sys.getTimerResolution();
		return System.nanoTime();
	}

	private static class RunningAvg {
		private final long[] slots;
		private int offset;

		private static final long DAMPEN_THRESHOLD = 10 * 1000L * 1000L; // 10ms
		private static final float DAMPEN_FACTOR = 0.9f; // don't change: 0.9f is exactly right!

		public RunningAvg(int slotCount) {
			this.slots = new long[slotCount];
			this.offset = 0;
		}

		public void init(long value) {
			while (this.offset < this.slots.length) {
				this.slots[this.offset++] = value;
			}
		}

		public void add(long value) {
			this.slots[this.offset++ % this.slots.length] = value;
			this.offset %= this.slots.length;
		}

		public long avg() {
			long sum = 0;
			for (int i = 0; i < this.slots.length; i++) {
				sum += this.slots[i];
			}
			return sum / this.slots.length;
		}

		public void dampenForLowResTicker() {
			if (this.avg() > DAMPEN_THRESHOLD) {
				for (int i = 0; i < this.slots.length; i++) {
					this.slots[i] *= DAMPEN_FACTOR;
				}
			}
		}
	}
}

Here’s render:


	public void render() {
		frames++;
		frame_count++;

		long start = System.nanoTime();

		Graphics2D g = tmp.createGraphics();
		g.setColor(Color.black);
		g.fillRect(0, 0, WIDTH, HEIGHT);

		level.draw_edge_persepctive(g, SpriteType.ranger, x, y, pixel_x, pixel_y, 13, 9);

		for(Entity e : entities) {
			e.render(g, level.p_screen_x, level.p_screen_y);
		}

		Font.printString(tmp, "Rogu3", 4, 4, 5, 0x65DE31, 0x454545);
		Font.printString(tmp, "Power: " + score, 4, Font.h * 2 + 4, 24, 0xFA1122, 0x911122);
		Font.printString(tmp, "Entities: " + Level.ent_count, 4, Game.HEIGHT - (Font.h * 2) - 4, 24, 0xFFFFFF, 0x000000);
		Font.printString(tmp, "FPS: " + fps, 800 - 80 - 16, 4, 50, 0xABABAB, 0x232323);

		announce(g);

		g.drawImage(Art.border, 0, 0, 8, 8, 0, 0, 8, 8, null);
		g.drawImage(Art.border, Game.WIDTH - 8, 0, Game.WIDTH, 8, 24, 0, 32, 8, null);
		g.drawImage(Art.border, 0, Game.HEIGHT - 8, 8, Game.HEIGHT, 0, 24, 8, 32, null);
		g.drawImage(Art.border, Game.WIDTH - 8, Game.HEIGHT - 8, Game.WIDTH, Game.HEIGHT, 24, 24, 32, 32, null);

		for(int ix = 0; ix <= 50; ix ++) {
			g.drawImage(Art.border, 8 + (ix * 16), 0, 8 + (ix * 16) + 16, 8, 8, 0, 24, 8, null);
		}
		for(int ix = 0; ix <= 50; ix ++) {
			g.drawImage(Art.border, 8 + (ix * 16), Game.HEIGHT - 8, 8 + (ix * 16) + 16, Game.HEIGHT, 8, 24, 24, 32, null);
		}
		for(int iy = 0; iy <= 34; iy ++) {
			g.drawImage(Art.border, 0, 8 + (iy * 16), 8, 8 + (iy * 16) + 16, 0, 8, 8, 24, null);
		}
		for(int iy = 0; iy <= 34; iy ++) {
			g.drawImage(Art.border, Game.WIDTH - 8, 8 + (iy * 16), Game.WIDTH, 8 + (iy * 16) + 16, 24, 8, 32, 24, null);
		}

		g.dispose();
		g = getGraphics();
		if(g != null) {
			g.drawImage(tmp, 0, 0, null);
			g.dispose();
			flip();//show's the bufferstrategy
		}

		render_time = System.nanoTime() - start;

		if (System.nanoTime() > next_frame_count) {
			next_frame_count = System.nanoTime() + 1000000000;
			fps = frame_count;
			frame_count = 0;
			System.out.println("FPS: " + fps + ", Process Time: " + process_time / 60 + " Render Time: " + render_time);
			process_time = 0;
		}
	}

A few seconds of running…
FPS: 1, Process Time: 7992 Render Time: 138639760 FPS: 57, Process Time: 161622 Render Time: 9624389 FPS: 60, Process Time: 104913 Render Time: 11918064 FPS: 61, Process Time: 103605 Render Time: 8334624 FPS: 60, Process Time: 101535 Render Time: 12660010 FPS: 61, Process Time: 107089 Render Time: 8015489 FPS: 42, Process Time: 142956 Render Time: 18470568 FPS: 62, Process Time: 129872 Render Time: 8149031 FPS: 60, Process Time: 93706 Render Time: 10992659 FPS: 60, Process Time: 93977 Render Time: 11397550 FPS: 60, Process Time: 89091 Render Time: 12375007 FPS: 60, Process Time: 88103 Render Time: 12378847 FPS: 61, Process Time: 90599 Render Time: 10045067 FPS: 60, Process Time: 105866 Render Time: 11264862 FPS: 61, Process Time: 79250 Render Time: 11252489 FPS: 59, Process Time: 96743 Render Time: 16203345 FPS: 61, Process Time: 104095 Render Time: 13690799 FPS: 61, Process Time: 107302 Render Time: 10396627 FPS: 60, Process Time: 95676 Render Time: 12034540 FPS: 61, Process Time: 95185 Render Time: 12393353 FPS: 61, Process Time: 88039 Render Time: 12382261 FPS: 61, Process Time: 86411 Render Time: 12071659 FPS: 60, Process Time: 91651 Render Time: 13107567 FPS: 61, Process Time: 96309 Render Time: 10673097

#2

Are you using a canvas or JPanel?

I see very little stuttering and what little I do see is a slight slowness on refreshing when moving vertically.

I have the same issue when I use a JPanel for rendering instead of a canvas but it does not always happen. I think I might have something to do with monitor refresh rate.

That is just a guess though.

#3

Using canvas. Its really driving me crazy, considering both the update rate and render rate are well within the target rates.

#4

Smooth as butter for me.

Why don’t you tell us about your OS, JRE, browser, etc? :slight_smile:

#5

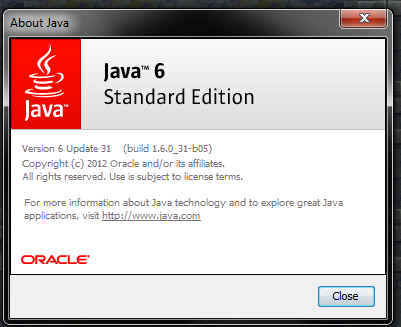

Windows 7 Pro,

, Google Chrome

I just tried adding this

Toolkit.getDefaultToolkit().sync();

and it made it much better O_o

EDIT: spoke too soon! so scratch that, still the same

#6

I looked at the stuttering I get which looks identical to yours and tried that line and it still stutters slightly.

I think this has to do with the display because my apps do not stutter on my laptop.

Laptop is win 7 with java6

Desktop is XP java6

#7

yeah it stutters sometimes

but honestly, I have tried every single gameloop in our big gameloop thread, and none is perfect

#8

Try out this game loop! (And don’t forget the sleep trick)

#9

Love your smoke effect. Run smoothly 33fps here, 7 java 7u1 and java 6u24 <-- lazy to update.

#10

reserved. (how do delete posts)

#11

Thanks! I really owe it to my artist. :'D

#12

@ReBirth, you should update, from 24-31 there were significant security holes found with fixes applied. Your system is very vulnerable, no matter if you use Java or not.

#13

VSync.

#14

For anyone curious, this is what ended up working O_o


	private void gameLoop5() {

		if (System.getProperty("os.name").startsWith("Win")) {
			new Thread()
			{

				{
					setDaemon(true);
					start();
				}

				public void run() {
					while (true) {
						try {
							Thread.sleep(Long.MAX_VALUE);
						}
						catch (Exception exc) {
						}
					}
				}
			};
		}

		long lastTime = 0;
		long nanosInSecond = 1000L * 1000L * 1000L;
		long updateFrequency = 60;
		long updateInterval = nanosInSecond / updateFrequency;
		long nextUpdateTick = System.nanoTime();
		long now = 0;
		long start = 0;

		long FPS = 60;

		while (running) {
			long deltaTime = System.nanoTime() - lastTime;
			lastTime += deltaTime;
			start = System.nanoTime();
			for (now = System.nanoTime(); now > nextUpdateTick; nextUpdateTick += updateInterval) {
				this.update();
			}
			process_time += System.nanoTime() - start;

			render();
			Toolkit.getDefaultToolkit().sync();

			long sleepTime = Math.round((1000000000 / FPS - (System.nanoTime() - lastTime)) / 1000000);
			if (sleepTime < 0) continue;

			// this sleeping method uses Thread.sleep(1) for the first 4/5 of
			// the sleep loop, and Thread.yield() for the rest. This gives me an
			// accuracy of about 3-4 microseconds
			long prev = System.nanoTime(), diff;
			while ((diff = System.nanoTime() - prev) < sleepTime) {
				if (diff < sleepTime * 0.8)
					try {
						Thread.sleep(1);
					}
					catch (Exception exc) {
					}
				else
					Thread.yield();
			}
		}
	}
#15

At line 46, use “Math.round((1e9/FPS - (System.nanoTime() - lastTime)) / 1e6)”, 1e9 and 1e6 are doubles, making the calculation more accurate.

#16

thanks. btw why does it render over 60 fps tho???

#17

The good ol’ Matt Daemon;

Should be added to Spronglies FAQ imo.
