Basically what’s going on is that when I have objects lit and they are rotated 0 or 180 degrees the lighting is perfect, but when rotated 90 or -90 degrees the lighting is inverted.

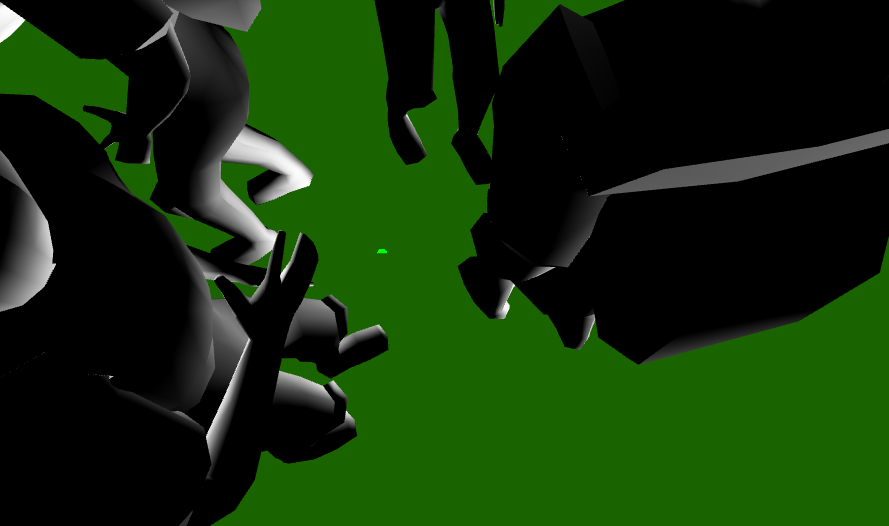

Image: models on left are rotated 0 and 180 degrees, models on the right…well you get it.
Code:
//===================================================
//===========PROJECTION
//===================================================
float[] matrix_array = new float[16];
gl.glGetFloatv(GL2.GL_PROJECTION_MATRIX, matrix_array, 0);
Matrix4 m4 = new Matrix4();
m4.setMatrix(matrix_array);
FloatBuffer matrix_buffer = Buffers.newDirectFloatBuffer(m4.toArray().length);
matrix_buffer.put(m4.toArray());
matrix_buffer.flip();
shader.setAttributeMatrix4f(gl, false, "projection_matrix", matrix_buffer);
//===================================================
//===========MODELVIEW
//===================================================
matrix_array = new float[16];
gl.glGetFloatv(GL2.GL_MODELVIEW_MATRIX, matrix_array, 0);
m4.setMatrix(matrix_array);
matrix_buffer = Buffers.newDirectFloatBuffer(m4.toArray().length);
matrix_buffer.put(m4.toArray());
matrix_buffer.flip();
shader.setAttributeMatrix4f(gl, false, "modelview_matrix", matrix_buffer);
//===================================================
//===========NORMAL
//===================================================
Matrix3 m3 = new Matrix3();
m4 = m4.invert();
m4 = m4.transpose();
m3.copyMatrix(m4.m_mat);
matrix_buffer = Buffers.newDirectFloatBuffer(m3.toArray().length);
matrix_buffer.put(m3.toArray());
matrix_buffer.flip();
shader.setAttributeMatrix3f(gl, false, "normal_matrix", matrix_buffer);
//===================================================
//===========MODEL-TO-WORLD
//===================================================
Vector3 rotation = m_transform.getRotation();
Vector3 scale = m_transform.getScale();
Vector3 translate = m_transform.getTranslate();
Matrix4 rot_mat = new Matrix4().initRotate(rotation.m_x, rotation.m_y, rotation.m_z);
Matrix4 scale_mat = new Matrix4().initScale(scale.m_x, scale.m_y, scale.m_z);
Matrix4 trans_mat = new Matrix4().initTranslate(translate.m_x, translate.m_y, translate.m_z);
m4 = trans_mat.multiply(rot_mat.multiply(scale_mat));
m4.transpose();//make column major
matrix_buffer = Buffers.newDirectFloatBuffer(m4.toArray().length);
matrix_buffer.put(m4.toArray());
matrix_buffer.flip();
shader.setAttributeMatrix4f(gl, false, "model_to_world_matrix", matrix_buffer);
Vert Shader:
in vec2 tex_coord;
in vec3 vert_pos;
in vec3 normal;
uniform vec3 light_pos;
uniform vec3 view_pos;
uniform mat3 normal_matrix;
uniform mat4 modelview_matrix;
uniform mat4 projection_matrix;
uniform mat4 model_to_world_matrix;
out vec2 pass_tex_coord;
out vec3 pass_normal;
out vec3 pass_light_dir;
out vec3 pass_view_dir;
void main(void)
{
vec4 pos = vec4(vert_pos.xyz, 1.0);
gl_Position = projection_matrix * modelview_matrix * pos;
pass_tex_coord = tex_coord;
vec3 vert_pos_world = vec4(model_to_world_matrix * pos).xyz;
pass_normal = vec4(model_to_world_matrix * vec4(normal, 0)).xyz;
pass_light_dir = vert_pos_world - light_pos;
}
Frag Shader:
in vec2 pass_tex_coord;
in vec3 pass_normal;
in vec3 pass_light_dir;// L
in vec3 pass_view_dir;// V
out vec4 out_color;
void main(void)
{
vec3 n_normal = normalize(pass_normal);
vec3 n_light_dir = normalize(pass_light_dir);
float n_dot_l = max(0.0, dot(n_normal, -n_light_dir));
out_color = vec4(n_dot_l, n_dot_l, n_dot_l, 1.0);
}
Edit: replaced color variable with normal, same values are sent, they are the correct normals. I have verified by outputting them as color
