Problems with key-framed (MD2) animations

Engines, Libraries and Tools
#1

Hi

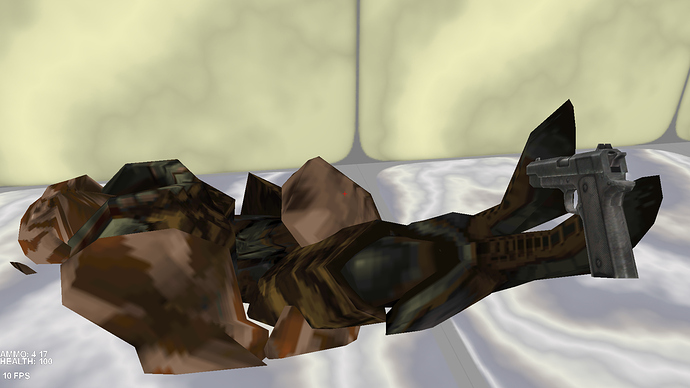

When I try to use a MD2 model on a very slow machine (then I have a low frame rate), the very last interpolation seems wrong, the model looks weird, especially when dying. This bug is reproducible with JMonkeyEngine 2 and Ardor3D:

1920×1080 324 KB

Have you ever had the same problem?

The source code of the key frame controller is here:

The delta is always in [0;1]. I wonder if the variable containing the index of the next frame can take a wrong value, for example the first frame of the next part would be picked instead of the last frame of the current part.

#2

I’m sure there already was a thread about this, right? :persecutioncomplex:

#3

if you look at line 436 you’ll see that the author already tried to fix this case. my assumption is the bug is in findFrame. why not do some system-out’s (or breakpoints) when _curFrame and _nextFrame are assigned. the business logic there seems like it can miss several edge cases.

#4

Looks like that. Suspicious lines:

630 _nextFrame = 1;
…
639 for (_nextFrame = 0; _nextFrame < _keyframes.size() - 1; _nextFrame++) {

#5

Thank you for your help. I’m going to give it another try tonight. I think that it would be better if I kept a laptop with me to make some tests during my pause at work but my battery is broken.

Edit.: I don’t call setSmoothTranslation in my case, _isSmooth is then always set to false.

#6

I think _nextFrame < _keyframes.size() should be in line 639 (and 671 too):


//line 639
for (_nextFrame = 0; _nextFrame < _keyframes.size() - 1; _nextFrame++) {
    if (getMinTime() <= _keyframes.get(_nextFrame)._time) {
        break;
    }
}
#7

I get this: http://pastebin.java-gaming.org/f809147595e

#8

Stranger’s suggestion doesn’t work.

I get this with some more logs:
delta:3.3000550600000054 _curTime:53.300055060000005 _curFrame:50 _nextFrame:51 _before._time:50.0 _after._time51.0 minTime:46.0 maxTime:53.0

delta is a lot too big, it can only produce something completely absurd.

#9

The problem seems to come from delta and _curTime. When “time” is too big (low frame rate -> big period), the interpolations are wrong. Forcing the delta to keep between -1 and 1 almost fixed the bug but animations are stopped before their end :s

#10

Whatever the delta is, the logic should never allow the ‘cursor’ to go beyond its allowed range.

IMHO the implementation is very messy, and it could be replaced with a much simpler version that simply steps through the frames one at a time (like a doubly linked list, to support going backwards) , taking into account RepeatType when choosing the next frame.

#11

This class was not designed to support this case, in which the passed time is so big that it is longer than the time required to play all animations of a frame set. My animations would look a bit unregular without morphing, wouldn’t it? I ws too lazy to rewrite this class, maybe I will have to do so.

#12

Riven, you’re probably right, the bug comes from findFrame. Look at this case:
delta:3.3000550600000054 _curTime:53.300055060000005 _curFrame:50 _nextFrame:51 _before._time:50.0 _after._time51.0 minTime:46.0 maxTime:53.0

This happens at the end of an attack. _curTime becomes bigger than _maxTime and findFrame just does that:
line 631

if (_curTime > getMaxTime()) {

line 652

} else if (getRepeatType() == ComplexSpatialController.RepeatType.CLAMP) {
                return;

It should clamp _curTime to _maxTime if _movingForward is set to true instead of allowing the morphing code to use _curTime as is.

#13

That whole class desperately needs a complete overhaul, but I guess you can simple tell Renanse to patch it :slight_smile:

#14

Then I have to provide the patch :frowning:

#15

This seems to work:

double localMinTime = Math.min(_before._time, _after._time);
          double localMaxTime = Math.max(_before._time, _after._time);
          double clampedCurTime = Math.max(localMinTime, Math.min(_curTime, localMaxTime));
          double delta = (clampedCurTime - _before._time) / (_after._time - _before._time);

but the weapon stays above the dead guy :frowning:

#16

I forgot that weapons have only 173 frames (less than enemies).

#17

I have fixed this bug with your help, thank you very much. I will make a pull request as soon as possible. I’m very happy as this class is very important for my game, I don’t want to use skeletal animations yet.

#18

The pull request is here:
