I’ve been making my own sort of 2D game engine matching my code style for fun. As a personal challenge I tried to give it the ability to swap LWJGL with Java2D by changing one line.
I am really new to LWJGL, so upon implementing off-screen rendering with FBOs I noticed they weren’t working when I had 0, 0 being the top left corner of the screen as in Java2D.
EDIT: basically I can’t get this to work: https://gist.github.com/pwnedary/8012530

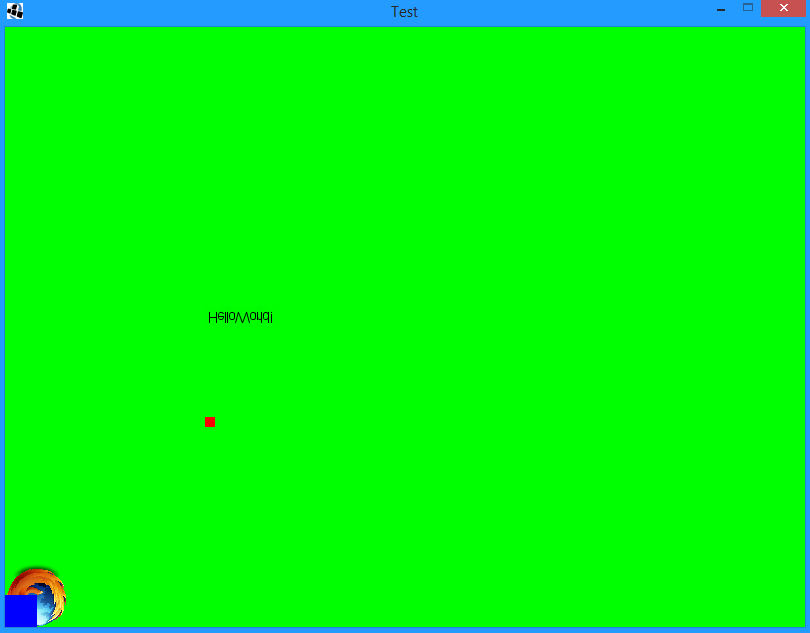

Here it is working and drawing a blue square over the firefox logo:
but here it isn’t:
I enter ortho with this:
glMatrixMode(GL_PROJECTION);
glLoadIdentity();
glOrtho(0, width, height, 0, 1, -1); // 0,0 : top-left
// glOrtho(0, width, 0, height, 1, -1); // 0,0 : bottom-left
glMatrixMode(GL_MODELVIEW);
glEnable(GL_TEXTURE_2D);
glShadeModel(GL_SMOOTH);
glDisable(GL_DEPTH_TEST);
glDisable(GL_LIGHTING);
glClearColor(0.0f, 0.0f, 0.0f, 0.0f);
glClearDepth(1);
glEnable(GL_BLEND);
glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);
glViewport(0, 0, width, height);
and construct FBO:
if (!GLContext.getCapabilities().GL_EXT_framebuffer_object) throw new Error("FBOs not supported");
// Initialize frame buffer
IntBuffer buffer = BufferUtils.createIntBuffer(1); // ByteBuffer.allocateDirect(1*4).order(ByteOrder.nativeOrder()).asIntBuffer(); // allocate a 1 int byte buffer
EXTFramebufferObject.glGenFramebuffersEXT(buffer); // generate
frameBufferID = buffer.get(0);
image.bind();
// Attach a texture
bind();
EXTFramebufferObject.glFramebufferTexture2DEXT(GL_FRAMEBUFFER_EXT, GL_COLOR_ATTACHMENT0_EXT, image.target, image.getTextureID(), 0);
check(); // Check (from LWJGL's tutorial on FBOs)
image.unbind();
unbind();
and FBO.bind:
EXTFramebufferObject.glBindFramebufferEXT(EXTFramebufferObject.GL_FRAMEBUFFER_EXT, frameBufferID);
GL11.glPushAttrib(GL_VIEWPORT_BIT);
GL11.glViewport(0, 0, image.getWidth(), image.getHeight());
Thanks in advance. I’m really desperate for posting this as I have had this problem for weeks.
